ETO STERILIZER MODEL NO. : GTE-001

FULLY AUTOMATIC
In FULLYAUTOMATIC , the sterilization is a one – touch operation; where the operator loads the material in the trolley provided along with the machine, closes the door and then presses the Start button to initiate the cycle; the cycle then continues on its own and after sterilizing and aerating the load; informs the operator that the cycle is complete. Once stored this program cannot be modified with invoking the password command

SEMI AUTOMATIC
A separate set of operating switches are provided to enable the operator to take a cycle in manual.

EQUIPMENT DESCRIPTION:-

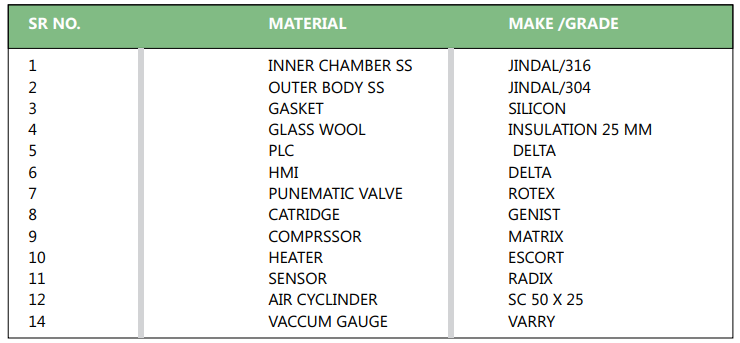

BOQ OF FULLY AUTOMATI ETO (IMPORTANT PARTS)

EQUIPMENT DESCRIPTION
· Heating System,
· Vacuum System,
· Humidity System,
· Control Panel
· Air Inlet Filter
· PLC/HMI
· Instrument Printer
SAFETY FEATURES
· All sensors linked to the automation, ensure reliability and failsafe operation.
· Screen on control panel indicates specific phase during the operation.
· Every cycle there is a Leak test period; which checks the leakage and aborts the cycle if there is a leakage in the system.
· Negative chamber pressure ensures that gas cannot escape into operating area. Locked door sensor during cycle
· Constant watch over entries and break diagnostic from automation, which warns the operator, by means of messages on indicator and buzzer.
· Cycle completion record is shown on the printout.
· Chamber and cabinet made of high grade stainless steel .
· PLC display 7’’ colour touch screen.

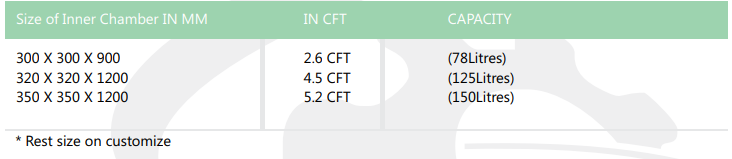

SIZE
